IND 250/251 - Computer Integrated Manufacturing

Introduction

IND 250 - Computer Integrated Manufacturing
Presents basic principles used in the design and implementation in a computer integrated manufacturing system. Emphasizes team concept and all aspects of a computer integrated manufacturing system to include the following: Robotics, Conveyor Control, Machining Center Integration Quality Control, Statistical Quality Control, and Computer Integrated Manufacturing (CIM) software.

Required Materials:
CNC Trade Secrets - James Harvey
Full Frame Anti-Fog Safety Glasses
Digital Caliper
Software:
Autodesk Fusion 360
Fusion 360 Post Processors
Universal Laser Cutter - ULC Control Panel
Carbide 3D - Software Downloads
Resources:
Fundamentals of CNC Machining - Autodesk
Tormach Machine Code Reference
Class Speeds and Feeds Chart

IND 251 - Autmomated Manufacturing Systems
Presents basic principles used in the design and implementation in manufacturing work cells. Includes selection of the robot system, worksite, application cell sensors, development of cycle times, and economic analysis.

Required Materials:
Thimble Outside Micrometer, 0-1 in.
Cylindrical Edge Finder, .2 in tip
Software:
Same as IND250
Resources:
Same as IND250

8.20 - Welcome!

Welcome to IND250 and 251! We will introduce the class concepts, review the syllabus, and create a small introductory project using simple geometry and materials

Getting Started:
Create a simple 3D container using 3/16" foam core board that contains a continuous side panel
The container cannot have 4 flat sides, can be 3 or more than 4
Create a miter tool to meet the number of sides and the internal angle of the flat panel
Determine the angle you need to cut in the material using your created tool and razor blade
Create a minimal base and hot/CA glue to flat layout walls to create your 3D container

Supplemental Materials:
PVCC Photo Release Form
Class Example - 8-Sided Box (Fusion 360 .f3d)
Class Example - 8-Sided Box (.dxf)

For next class...
Continue to work on your design for next week. We will finish in class. If you need to laser cut or use the lab please refer to lab or office hours.
Create an Autodesk Educational Account if you have not done so already. This will be used to log in to Fusion 360 to perform our CAM operations
Make sure to fill out the photo release form and submit via this form: Photo Release Form Submission
IND251:
Please fill out this form to build out the syllabus and topics for this semester: IND251 Syllabus Form

8.27 - Overview of CNC

This is an overview of the safety, tools, machines and processes for this class. We are looking at programming simple 2D parts using DXF file format. This will introduce the desktop CNC and using conversational mode on the mills. We will be using simple tooling to work though our first part together.

Getting Started:
Adjust the 2D profile to your liking. We will create some tool holders for extra tooling.
If you are using the Carbide, create a simple toolholder for 1/4 in and 1/8 in bits.
If you are using the Tormach, create a DXF in conversational to create a toolholder for 1/4" and TTS. Use the online PathPilot to build your DXF path with tools.
We will using simple tools to create a part on the CNC. This will provide context for all the operations as we move forward.
IND250:
Using Fusion 360, change the parameters of the design and work in the CAM space to build a toolpath for the Carbide3D Desktop CNC.
Manipulate your design in Fusion 360 to suit your needs. Fit the material chosen.
Import the tool library and post processor for the desktop CNC.
Create a simple toolpath using a 1/4" cutter that outlines the shape of the part and cuts your holes.
As a bonus you can add a simple facing operation.
Sand and finish your part. Measure to compare!
IND251:
Use the PathPilot HUB to import a DXF from Fusion 360. Create your GCODE and then work the conversational tool on the Tormach 1100. Create your tool holder during class.
Manipulate your design in Fusion 360 to suit your needs. Fit the material chosen.
Start the tool library and post processor for the Tormach PCNC1100.
Work to design a full extra tool holder and two in process TTS tool holders for each project.
Use the conversational facing, DXF and drilling to make your parts on the 1100.
Sand and finish your parts. Make sure you add your settings appropriately to the Feeds and Speeds Googloe Doc.

Supplemental Materials:
Parametric Tool Holder Design (.f3d)
Class Speeds and Feeds Chart
PathPilot HUB
Tormach PathPilot HSM Post Processor
Carbide 3D - Software Downloads
Carbide3D HSM Post Processor

For next class...
Begin your documentation. Suggested - use Google Sites
Finish your toolholder from class. Create GCODE from your DXF file and include in your documentation.
Read Chapter 1, 2, & 3 of CNC Trade Secrets - Harvey.

9.03 - Milling Introduction

We are going to continue our parts from the previous class. We are going to check our feeds, speeds, simulations, and machine settings while cutting out our tool holder parts.

Getting Started:
Begin your documentation of the previous class. We did CAM process and Conversational on the machines. Make sure to follow the guidelines to setup your ideas.
Setup your part from last class and work on importing the post processor into Fusion 360. Double check your simulation to make sure it fits the parameters.
IND250: Export your .nc file to a flash drive and setup Carbide Motion for the job! Setup the workholding for the job.
IND251: Export your DXF from the sketch and import into the base computer on the Tormach 1100. Use the conversational to create your GCODE with two minimal operations. Setup your workholding with a sacrificial part underneath to protect the table. Make sure to measure your tool.

Supplemental Materials:
Carbide 3D - Software Downloads
Carbide Motion Setup Video
Titans of CNC - Lie Nielson Factory

For next class...
Make sure that your part is complete. We need to cut out a total of 4 tool holders for class.
What could be improved on our process? What worked really well? Update your CAM/GCODE accordingly...
Add any information to the Class Speeds and Feeds Chart if needed.
Make sure you finish your foamboard 3D project from the first day of class!
Read Chapter 4 of CNC Trade Secrets - Harvey. Check out the Titans of CNC video above!
Be prepared to finish the parts from this class and begin a new setup to move forward. If you need lab time check the lab hours or setup time with me to meet if needed.

9.10 - Tooling & Library

We will finish our projects from last class and move forward into building out our tool library. We will develop a class spreadsheet for tools, machines and materials. We will also load this into Fusion and save it for future classes. If time permits we will begin GCODE

Getting Started:
Make sure to continue your documentation! If you need help with formatting let me know.
Finish your foam core project! We will share these at the end of class tinight!
Make sure your projects are updated with the latest version of your CAM/conversational
There will be class time to mill!

Supplemental Materials:
Intro to CAM in Fusion Video
Fundamentals of CNC Machining - Autodesk

For next class...
Have your foam board project complete with tool to share in class.
Complete your group's tool holder. We should have a total of 4 tool holders in the class minimum.
Add any speeds and feeds from class to the spreadsheet!
We will go over tool library and GCODE next class!
Read Chapter 5 CNC Trade Secrets - Harvey. Read Chapter 3 of Fundamentals of CNC Machining - Autodesk.

9.17 - Tooling & GCODE Intro

We are going to continue our progress in developing a deeper understanding of machine communication. We will agree on a tool library for each machine, then we will build it in Fusion. We will also begin hand coding a few examples in GCODE.

Getting Started:
What are the major tools for each machine?
What tool holders do we need to access?
Look up the manufacturer's tool holders and datasheets!
Add the tools in a logical order for Fusion 360 and add to our class speadsheet.

Supplemental Materials:
Tormach Machine Code Reference
Speeds & Feeds Cheatsheet

For next class...
Make sure everything from previous classes are cut.
Create your simple rectanglular part in Fusion and make a 2D Contour with 2 depth passes.
Post process your work to GCODE and reverse engineer the lines. What do each of the commands mean? Use the Tormach Machine Codes Guide as an example.

9.24 - Advanced GCODE

Diving into GCODE and spending some time working through some of the projects. We will create unique shapes in GCODE and finish our projects from previous classes.

Getting Started:
What are the top few lines of GCODE in our program that we reverse engineered?
Break down each command and write down its meaning.
Create a simple program for a block on your own using G0 commands.

Supplemental Materials:
NC Viewer Plugin for Fusion
Online NC Viewer - ncview.com

For next class...
Create unique GCODE for the Tormach 1100 making 3 parts.
Make an odd sided part with 2 depths. Pick any tool and make sure you make it around your part.
Pick another shape that can be made with a pattern or has meaning to a part you're creating.
Create a circle with multiple depths.

10.01 - GCODE, Tooling & Maintain

We will review GCODE, test our personal programs, and work through adding tooling into Fusion for our actual library. We will finish any milling projects moving forward.

Getting Started:
Test your program in NCViewer.
Run your program on the PCNC1100.
Did it do what you expected? WHat was missing?

Supplemental Materials:

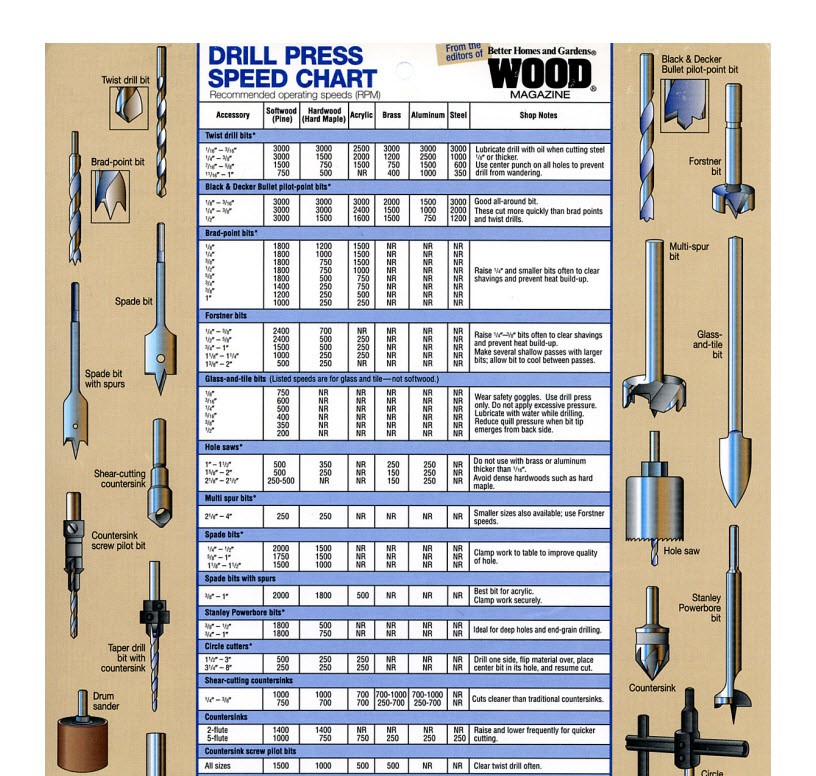

Drill Speed Chart

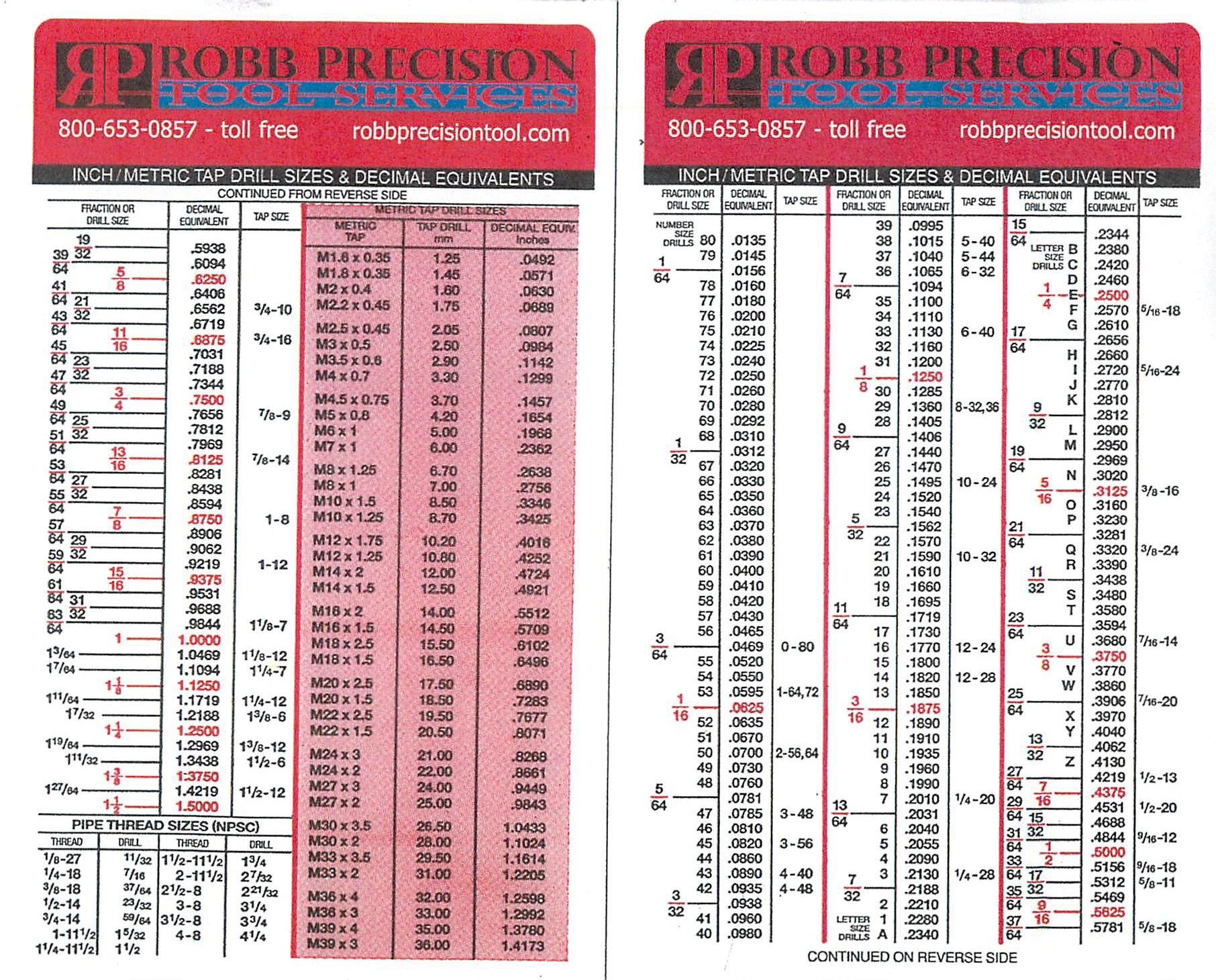

Drill & Tap Chart
Current Tooling Library

For next class...
NO CLASS on 10/8 - FALL BREAK
Make sure your tooling library is up to date.
Read Chapter 6 & 7 CNC Trade Secrets - Harvey. Read Chapter 5 & 6 of Fundamentals of CNC Machining - Autodesk.

10.08 - FALL BREAK
10.15 - 2D CAM Operations

Getting Started:
Take measurements off the vise jaws for the Tormach and Orange County Tools Vise
CAD the model in Fusion and prepare for CAM processes
Check up on your documentation for class!

Supplemental Materials:
Tormach 5" Vise Jaws (Isometric View)- .pdf
Tormach 5" Vise Jaws - .f3d
Current Tool Library

For next class...
NO CLASS on 10/22
Make sure you are all caught up on your projects. Use Lab time to make up the difference.
Complete your Tool Library and Soft Jaw CAM for class. If you are machining, make sure the soft jaws are ready for the Tormach and Orange Vise.
Use the time to make up any documentation.

10.22 - NO CLASS
12.3 - Last Class!
Please make sure that all your pieces to your projects are ready and you are prepared to present on Wednesday, 12/11 @5PM!

Supplemental Materials:
Project Rubric & Guidelines - .pdf
Final Project & Presentation Submission
Semester Documentation/Portfolio Submission
